Downside 2027

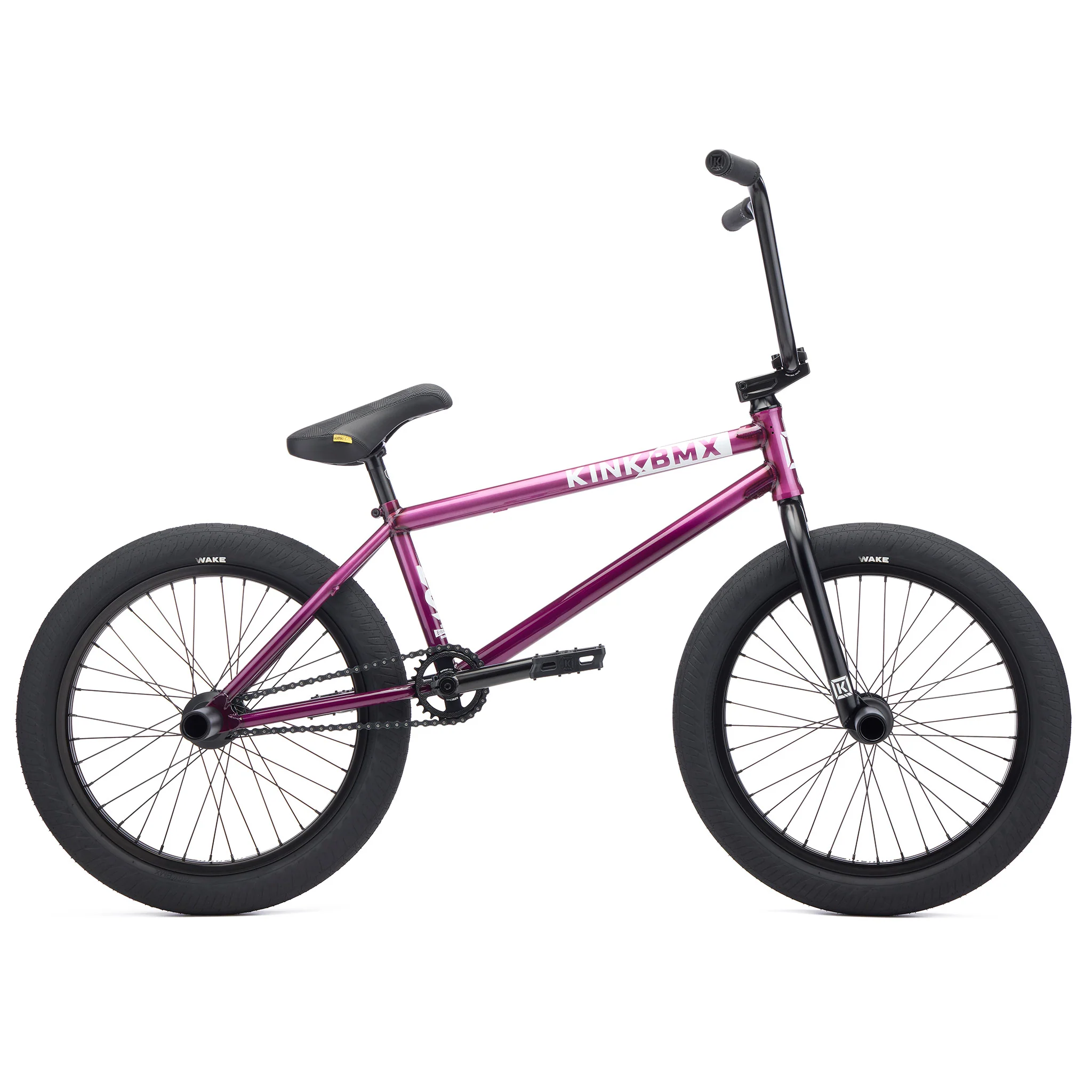

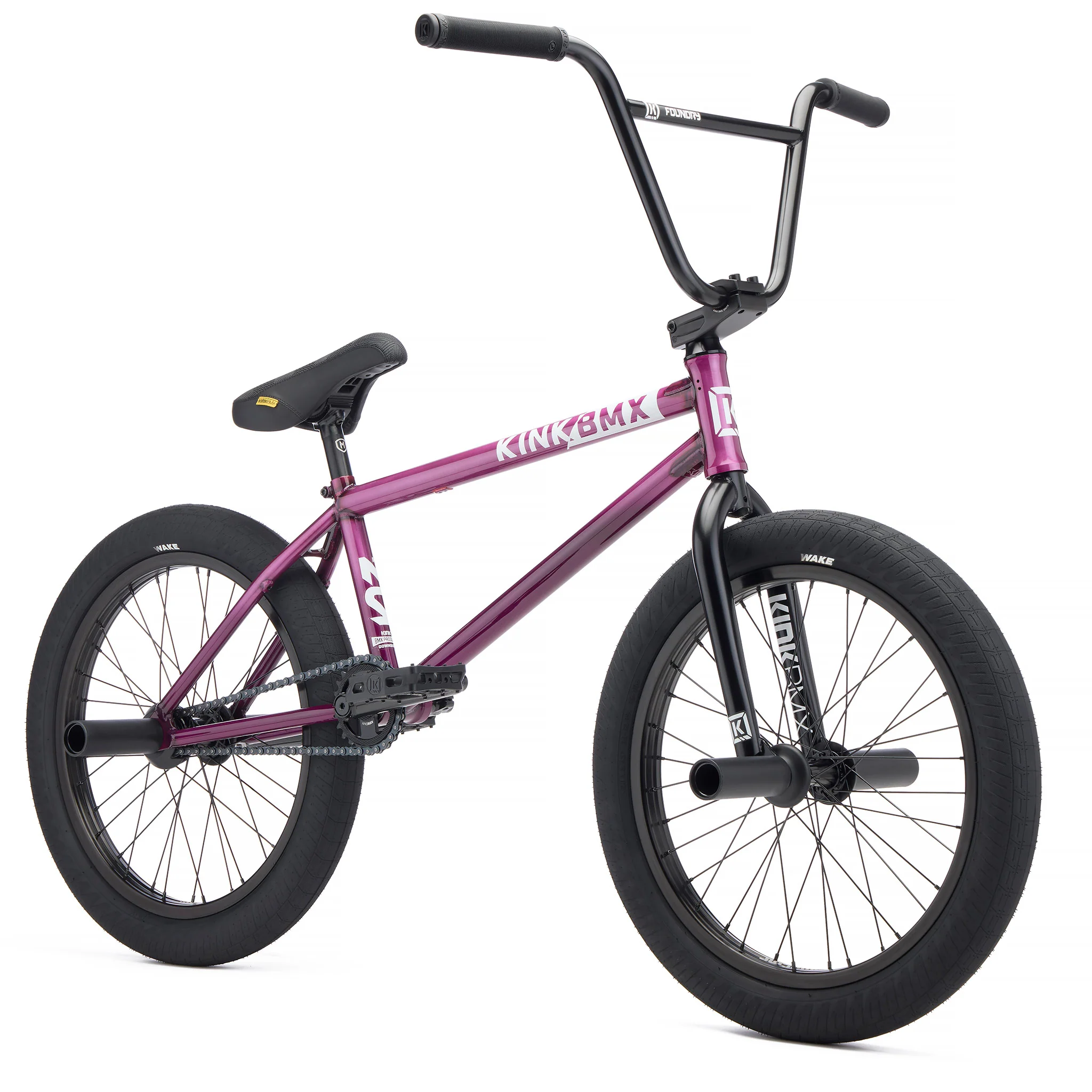

The Kink Downside is one of our top-of-the-line bikes. With this bike, there’s no need to worry about extra upgrades, it comes fully equipped with a sealed rear freecoaster hub, four nylon pegs, and four nylon hub guards. Aftermarket parts, like the Foundry bars and Imprint sprocket, found throughout improve the riding experience and longevity of the bike, while the modern geometry makes this bike responsive and great for street, plaza, and park riding. The Deep Purple fade paint job tops off the look of this killer bike.
Note: Optional brake set comes included.
Geometry
| Toptube Length | 20.75" |
| Chainstay Length | 12.75" |
| Headtube Angle | 75° |
| Seattube Angle | 71° |
| Standover Height | 9.25" |
| Bottom Bracket Height | 11.75" |
| Fork Offset | 25mm |
Tech Specs
| FRAME Kink Downside 100% 4130 Chromoly | PEDALS Kink Hemlock |
| FORK Kink Relay 100% 4130 Chromoly 1pc Steerer Tube Tapered Fork Legs | CHAIN Mission 510H |
| BARS Kink Foundry 9.5" 100% 4130 Chromoly TruTherm | SPROCKET Kink Imprint 25T CNC 7075-T6 |
| GRIPS Kink Form, Thrust Barends | SEAT Kink Impression Stealth |
| STEM Kink Brute 48mm | SEAT POST Mission Aluminum Stealth |
| HEADSET Mission Sealed Integrated (41.8 x 45) | SEAT CLAMP Integrated |
| BRAKE LEVER Mission Captive | FRONT HUB Mission Bond Sealed Bolt-In w/ Guards |
| BRAKE CABLE Mission L4 Linear | REAR HUB Mission Pace Sealed Freecoaster 14mm w/ Guards |
| BRAKES Mission Cease V2 (Removable Mounts) | DRIVER 9T |
| CRANKS Kink Ridge 3pc Tubular Chromoly 165mm – 8 Spline | RIMS Mission Mylar |
| BOTTOM BRACKET Sealed Mid 19mm | TIRES Kink Wake 2.45" |
| PEGS 4 x Mission Nylon Pegs | WEIGHT 27lb 15oz |
Original: $799.99
-65%$799.99
$280.00Product Information
